CRB series Ribbon Blenders

Get a quote

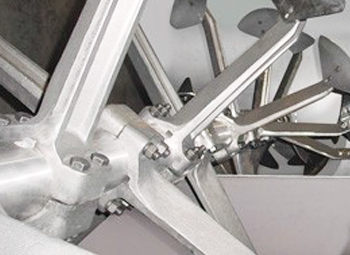

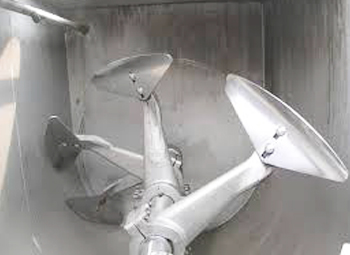

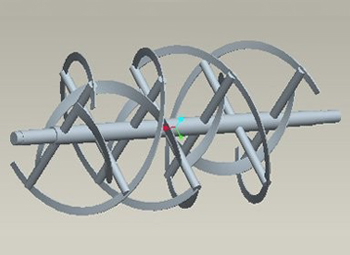

With a firm dedication towards delivering the unrivaled quality, we present a wide range of Horizontal Ribbon Blender to our customers. It consists of U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator which rotates inside. Fast and efficient blending is ensured owing to its agitator construction which provides a triple mixing action. A perfect balance of dimensions and configuration is struck to cause a movement avoiding dead spots and providing rapid product discharge.

Features / Advantages

Effective Blade Design, to achieve better mixing results
Available in SS or MS steel of construction
Capacity range from 40 ltrs to 9000 ltrs working volume
Available in Water cooled jackets for heat sensitive products.
Custom made solutions can be possible.
Easy cleaning & complete drain Possible due special design of blades.
Variety of dry Powders can processed with single machine.
Blades can be changed for different types of applications
Can be fitted with on line with other machines to optimize the process.

Techanical Specification

Model CRB GROSS VOLUME Ltrs WORKING VOLUME Ltrs Approx DIMENSIONS IN MM THICKNESS MM POWER H.P.

LENGTH BREADTH DEPTH

CRB 20 20 10 450 250 300 1.2 0.5

CRB 40 40 25 600 275 350 1.6 0.75

CRB 75 75 50 750 300 400 2 1.0

CRB 150 150 100 850 400 600 2 3.0

CRB 250 250 150 1000 450 600 2 3.0

CRB 400 400 250 1275 550 710 2 5.0

CRB 600 525 350 1500 600 800 3 7.5

CRB 800 800 500 1600 700 1000 3 10.0

CRB 1000 1100 700 1800 800 1000 3 12.5

CRB 1500 1500 1000 2000 800 1025 3 15.0

CRB 2000 2000 1250 2250 900 1100 4 20.0

CRB 4500 4750 3000 3000 1200 1450 5 30.0

CRB 9000 9000 5500 3750 1500 1775 6 50.0

CRB 12500 13000 8000 5000 1600 1800 6 60.0

CRB 18000 18000 10000 5000 2000 2300 8 75.0
