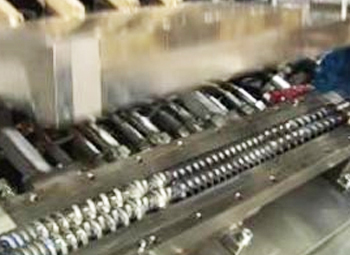

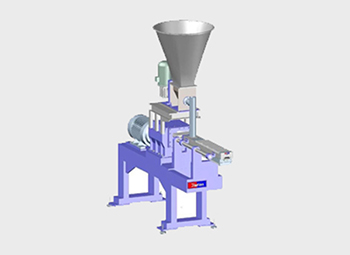

Co- Roatating Twin Screw Extruders
Indulged in the customers’ needs with excellence, we are involved in offering Twin Screw Extruders. We make them available in any size as per the requirement of the customers. Their effective design makes them easy to clean and produces better results of heavy as well as light mixing. They are made of special steel which is renowned for its high wear resistance. It is easy to change their complete element screw shaft.
Features / Advantages
- Very Economically priced
- Robust & strong design of Gear box for heavy duty Kneading at High Speeds

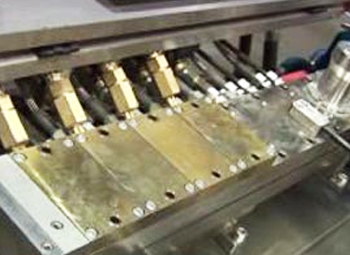

- Machine barrel is CNC machined for Water Cooling Jacket for effective cooling
- Easy to clean design
- All Individual Controls for heaters & cooling section for accurate Temp.
- Additional (Thermal) Heat transfer unit provided for energy savings
- Gear Box is fitted with Oil Circulating Cooling Pump
- Very Effective design for better Result of heavy as well as light mixing
- Segmented Screw Elements & liners to reduce the wear & tear operating cost
- All wear parts Are manufactured from a very Special Steel for High Wear resistance.
- Also Coated for better wear life.
- Easy for changing of complete Element screw shaft
- Very Wide range of production Capacity for Powder Coatings Section from 5 Kg/ hr.
- To 1250 Kg/Hr. Machines.
- Very strong design back up all machines technology upgradation.
Techanical Specification
| Model No. | Screw Dia. mm | L/D ratio | Main Motor Kw | Feed Motor Kw | Heaters Kw | Max. RPM of Screw | Do/Di ratio | Typical Output Range Kg./ Hr. |
| CTSE-15L | 15.0 | 18 | 3.75 | - | 3 | 650-800 | 1.53 | 2-5 kg/hr |
| CTSE-26 | 26.0 | 20 | 9.37 | 0.375 | 7.5 | 650-800 | 1.63 | 20-80 kg/hr |
| CTSE-40 | 40.0 | 20 | 9.37 | 1.125 | 9 | 650-800 | 1.63 | 80-180 kg/hr |
| CTSE-52 | 52.0 | 20 | 45 | 2.25 | 12 | 650-800 | 1.63 | 100-350 kg/hr |
| CTSE-52-A | 52.0 | 24 | 56 | 5.6 Twin | 18 | 650-800 | 1.63 | 250-600 kg/hr |
| CTSE-63 | 63.0 | 24 | 90 | 7.5 Twin | 24 | 650-800 | 1.63 | 500-1200 kg/hr |
